DNA Normalization

BioDynami DNA Normalization

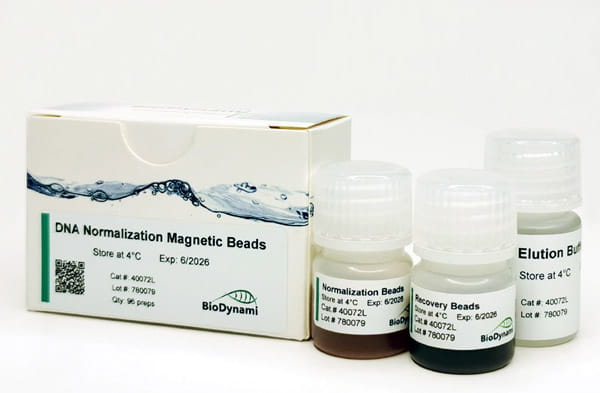

DNA Normalization Magnetic Beads



The DNA Normalization Magnetic Beads was developed for normalization of NGS libraries, PCR fragments, sheared genomic DNA, and genomic DNA based on our magnetic bead technology. Magnetic beads has DNA-binding capacity. With the limitation of the DNA-binding capacity, normalized amount of DNA is recovered, and excess unbound DNA is separated.

The normalization beads can be used for samples from various sources. Traditional fluorescent methods of DNA normalization require the setup of a standard curve from known DNA concentrations, compare with DNA samples, aliquot adjusted volume for each sample, and add adjusted volume of elution buffer to match the total volume for each sample, which would need extensive effort and long time. The beads-based protocol is simple, fast, centrifugation free, and filtration free. Additional DNA quantification and dilution is not necessary after normalization with magnetic beads. Labor, time, and reagent are saved with the normalization beads.

Features

  • Consistent normalization of various sources
    • NGS libraries
    • PCR fragments
    • Sheared genomic DNA
    • Genomic DNA (Cat.# 40071 and 40072 only)
  • Excellent dynamic input ranges: 6-10 folds with different input amounts
  • Magnetic beads technology
    • No centrifugation
    • No column
    • No filtration
  • Elution: as low as 10-20 µl without yield loss
  • Removal of unwanted components and impurities

DNA Normalization: Example

Normalization of NGS libraries. The input NGS library amount and normalized NGS library amount are indicated.

dna normalization magnetic beads (>300 ng input)

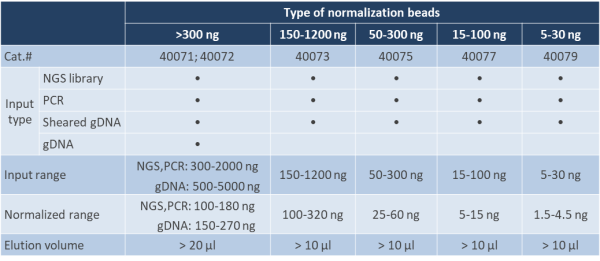

Specifications of DNA Normalization Magnetic Beads

Type of normalization beads

Cat.#

40071; 40072

40073

40075

40077

40079

Input

type

NGS library

PCR

Sheared gDNA

gDNA

Input range

NGS, PCR: 300-2000 ng

gDNA: 500-5000 ng

150-1200 ng

50-300 ng

15-100 ng

5-30 ng

Normalized range

NGS, PCR: 100-180 ng

gDNA: 150-270 ng

100-320 ng

25-60 ng

5-15 ng

1.5-4.5 ng

Elution volume

>20 µl

>10 µl

>10 µl

>10 µl

>10 µl







Background info

DNA concentration as a normalization strategy
